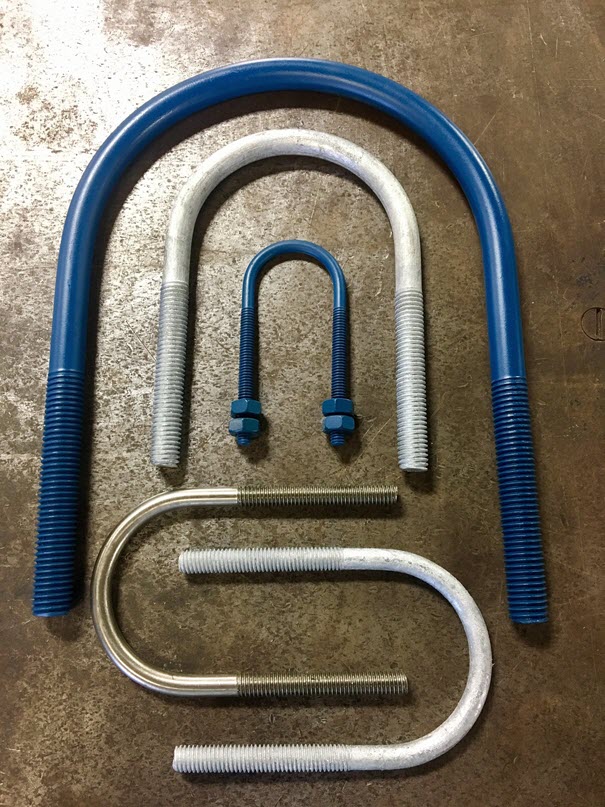

Long Tangent U-Bolts
Fig 137 U-Bolts Supplier
The Dale Company is a leading manufacturer of long tangent U-Bolts and Fig 137 U-Bolts for industrial applications. We offer standard size and custom long tangent U-bolts at competitive prices, with quick turnaround and same-day shipping for many products.
Long tangent U-bolts Fig 137 have two threaded legs extending from a u-shaped base. The longer legs are used to mount pipe to structural material or thick flanges. The longer thread allows the bolt to be tightened against the pipe diameter, or leave a gap between the pipe and bolt if required. The bolts are specified by thread diameter and pipe diameter to provide the length and threading required for a secure join. Our Pro-Coat U-Bolts™ offer a corrosion-resistant, low friction bolt that protects the pipe coating and performs well in harsh environments.
Stock bolts have a minimum purchase of $25.
Our Products
Check out the parts we offer. Skus ending in 5 is for a 5 lb box. Skus ending in 10 is for a 10 lb box.
| Name | Nominal Pipe Size (NPS) | NPS Decimal | Material | Finish | SKU | |
|---|---|---|---|---|---|---|
