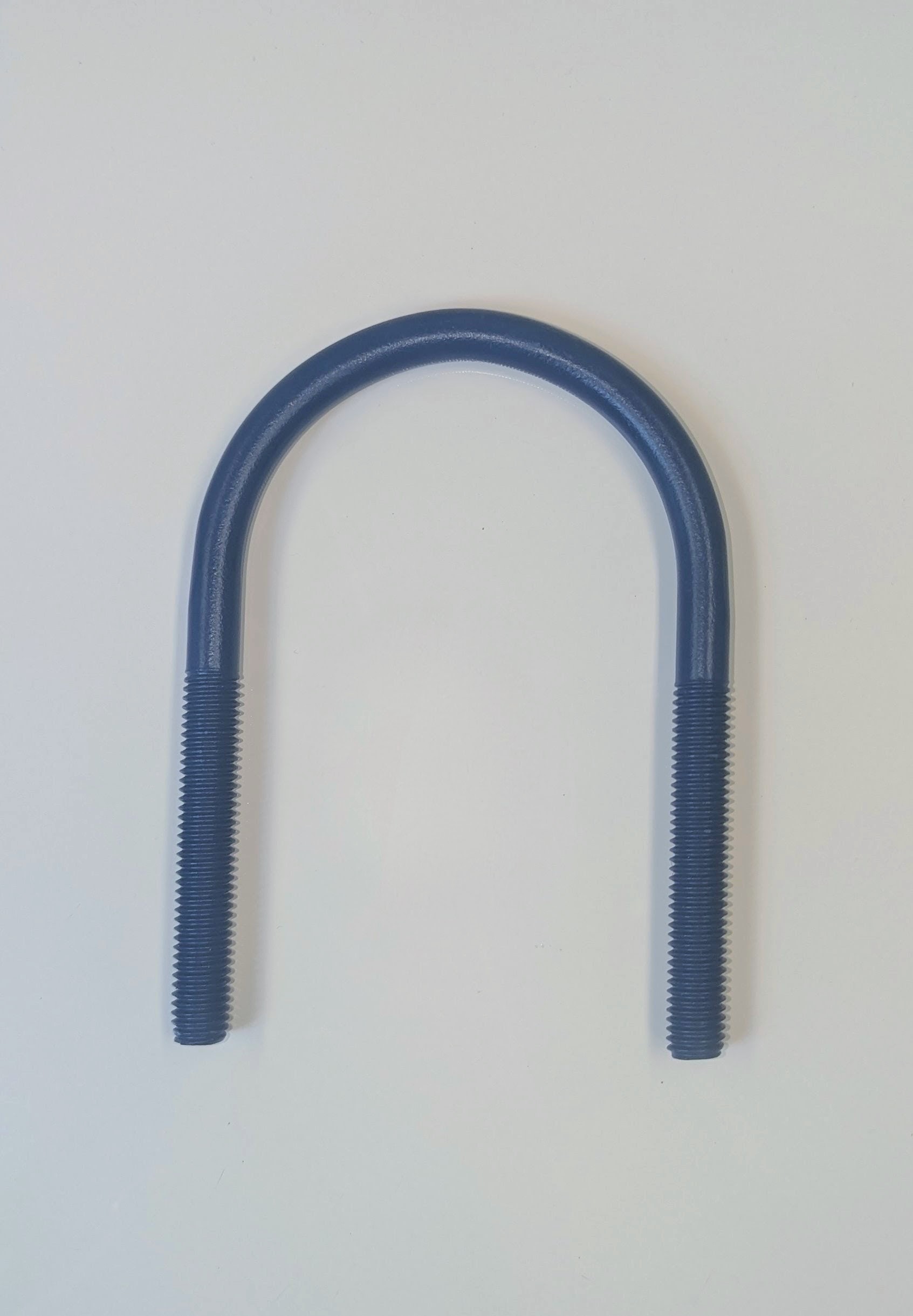

Fig. 137 – 1 x 22 Round U-Bolt (U-RND), Xylan – (PTFE) Teflon® Blue
Fig. 137 Round U-Bolt (U-RND), 1″-8 Carbon Steel (CS), Xylan – (PTFE) Teflon® Blue, 22 1/4″ x 25 5/8″ Dimensions, 5″ Thread Length, 8 TPI (Threads Per Inch)
This 22 NPS, 1 x 22 Fig. 137 U-bolt, crafted from strong carbon steel (CS) with a Xylan (PTFE) Teflon® Blue coating, provides exceptional resistance to corrosion, chemicals, and wear. Its low-friction surface ensures reliable performance in demanding applications such as industrial, oil and gas, offshore, and chemical processing projects.
Product Specifications
| Product SKU | XL66 |
|---|---|
| Product Category | Round U-Bolt (U-RND) |
| Product Sub Category | Fig. 137 |
| Quick Description | 1 x 22 |
| Long Description | 1″-8 x 22 1/4″ x 25 5/8″ x 5″ |
| D - Diameter | 1″ |
| Material | Carbon Steel (CS) |
| Finish | Xylan – (PTFE) Teflon® Blue |
| C - Inside Width | 22 1/4″ |
| L - Inside Length | 25 5/8″ |
| T - Thread Length | 5″ |
| Pitch | 8 |
| Full Description | 1"-8 Carbon Steel (CS), 22 1/4" x 25 5/8" Dimensions, 5" Thread Length, 8 TPI (Threads Per Inch), Fig. 137 Round U-Bolt (U-RND), Xylan – (PTFE) Teflon® Blue |
| Application | Agriculture, Chemical Processing, Custom Fabrication, Defense Contracting, Electrical & Infrastructure, Energy, Equipment Manufacturing, Heavy Construction, HVAC, Industrial Manufacturing, Marine Engineering, Maritime, Mining, Nuclear, Offshore, Oil & Gas, Pipeline, Power Generation, Rail & Transit, Renewable Energy, Shipbuilding, Solar, Steel Fabrication, Structural Engineering, Telecommunications, Utilities, Water Treatment |
| Nominal Pipe Size (NPS) | 22″ |
| NPS Decimal | 22 |
| Center to Center Width | 23 1/4″ |
